3D프린터 - 비금속

3D프린터 - 비금속

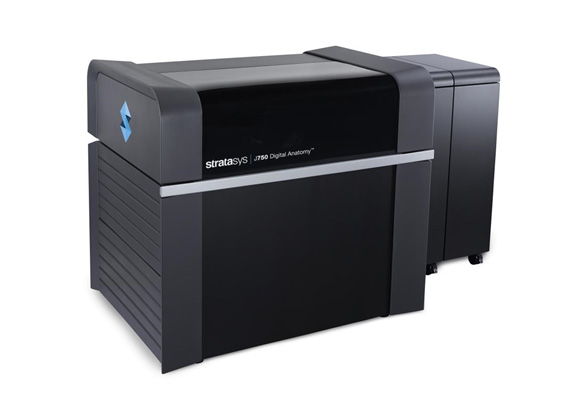

J750

- Technical data

  1. Building volume : 490 x 390 x 200 mm
  2. Building rate : 1.2 – 4.8 mm/h
  3. Layer thickness : 0.014 – 0.027 mm
  4. Precision optics : F-theta lens, high-speed scanner
  5. Scan speed during build process up : 2 x 10 m/s
  6. Process method : Polyjet 3D Printer

- Software

  1. GrabCAD Print, including the optional add-on GrabCAD Voxel Print

- Materials

  1. Rubber-like (Tango Blackplus, Agilus30)
  2. ABS-like (Vero series)

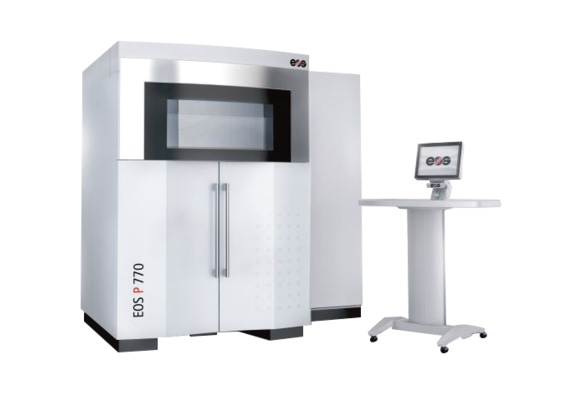

EOS P770

- Technical data

  1. Building volume : 700 x 380 x 580 mm
  2. Building rate : 32 mm/h
  3. Layer thickness : 0.06, 0.10, 0.12, 0.15, 0.18 mm ; (depending on material)
  4. Scan speed during build process up : 2 x 10 m/s
  5. Process method : Selective laser sintering

- Software

  1. EOS ParameterEditor, EOSAME, EOS PR Tools, PSW3.8

- Materials

  1. PA 2200

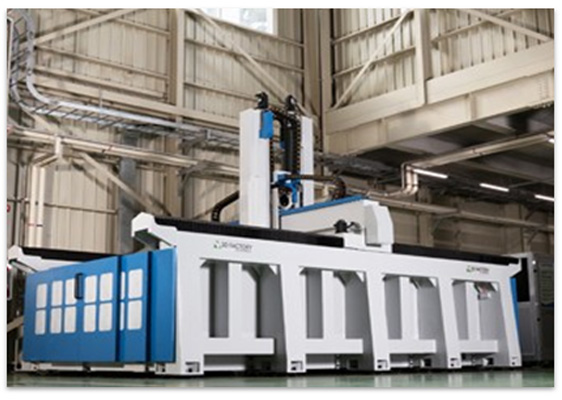

CMBA 5025

- Technical data

  1. Building volume : 5,000 x 2,500 x 1,500 mm
  2. Building rate : 25 kg/h
  3. Layer thickness : 0.5 - 8 mm
  4. Dimensions (W x D x H) : 4,050 x 700 x 4,500 mm
  5. Process method : Fused filament fabrication

- Materials

  1. PC / PLA /ABS / CFRP / BFRP / PETG

- Characteristic

  1. Able to manufacture extra-large products
  2. Composite materials available
  3. Equipped with dual material drying system
  4. Continuous measurement of product specifications during design (monitoring system)
  5. Machining at the same time as production (CNC machining)

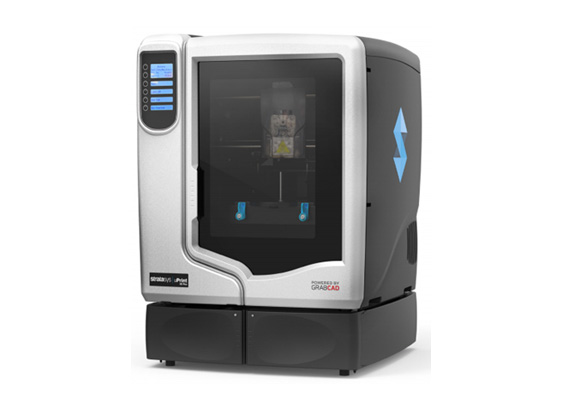

uPrinter-SE

- Technical data

  1. Building volume : 203 x 203 x 152 mm
  2. Nozzle Diameter : 0.35 mm
  3. Filament Diameter : 1.78 mm
  4. Layer thickness : 0.254 or 0.330 mm
  5. Process method : Fused filament fabrication

- Software

  1. CatalystEX, GrabCAD Print

- Materials

  1. ABS

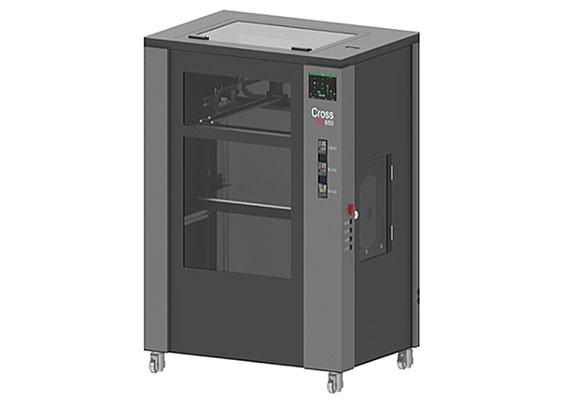

Cross Pro650

- Technical data

  1. Building volume : 600 x 500 x 650mm
  2. Nozzle Diameter : 0.3, 0.5, 0.7, 1.0 mm
  3. Process method : Fused filament fabrication

- Software

  1. Simplify3D

- Materials

  1. PLA series

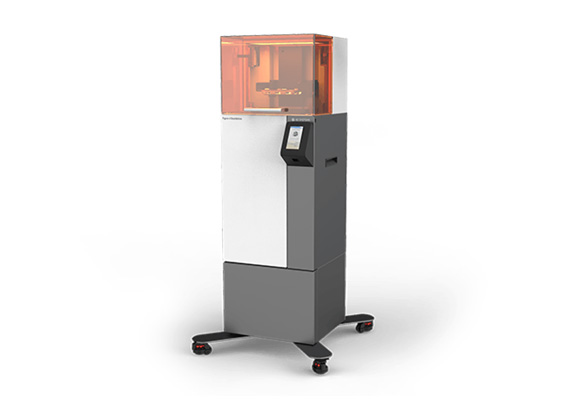

Figure 4 standalone

- Technical data

  1. Building volume : 124.8 x 70.2 x 196 mm
  2. Layer thickness : 0.065 mm
  3. Operating Environment
    (Temperature Humidity [RH])     : 18 – 28 °C / 20 – 80 %
  4. Process method : Digital light processing

- Software

  1. 3D Sprint® Software, 3D Connect™ Software Capable

- Materials

  1. Plastic, Rubber etc.

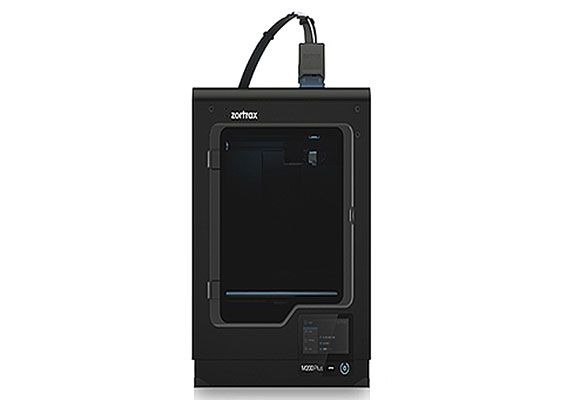

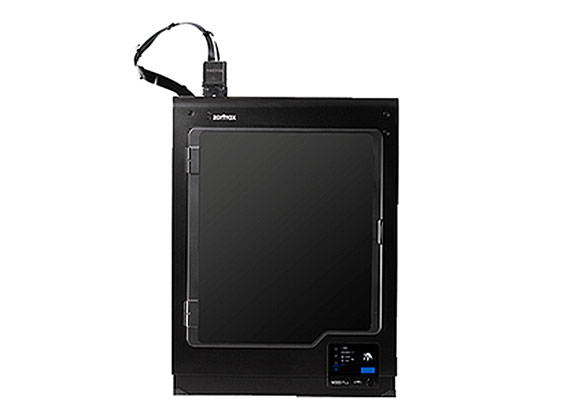

M200 / M 200 plus

- Technical data

  1. Building volume : 200 x 200 x 180 mm
  2. Nozzle Diameter : 0.3, 0.4, 0.6 mm
  3. Layer thickness : 0.09 or 0.390 mm
  4. Operating Environment(Temperature) : ~ 290 °C
  5. Process method : Fused filament fabrication

- Software

  1. Z-SUITE®

- Materials

  1. ABS series

M300

- Technical data

  1. Building volume : 300 x 300 x 300 mm
  2. Nozzle Diameter : 0.3, 0.4, 0.6 mm
  3. Layer thickness : 0.09 or 0.290 mm
  4. Operating Environment(Temperature) : ~ 290 °C
  5. Process method : Fused filament fabrication

- Software

  1. Z-SUITE®

- Materials

  1. ABS series

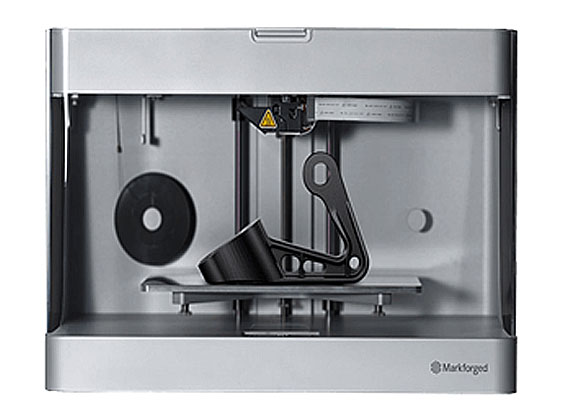

Mark two

- Technical data

  1. Building volume : 320 x 132 x 154 mm
  2. Nozzle Diameter : 0.4, 0.9 mm
  3. Layer thickness : 0.10 - 0.20 mm
  4. rocess method : Fused filament fabrication

- Software

  1. Elger Cloud

- Materials

  1. ABS series, Carbone fiber

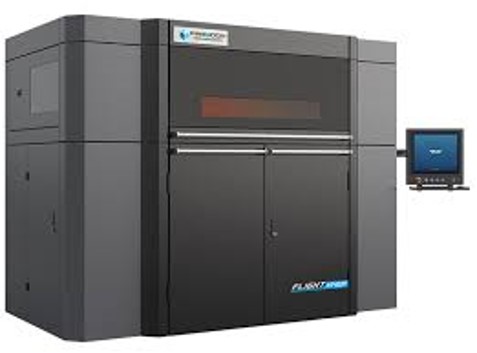

HT 403P

- Technical data

  1. Building volume : 400 x 400 x 450 mm
  2. Build rate : up to 4 L/h
  3. Laser type : CO2 Laser, 1 x 100W
  4. Scanner : High-precision three-axis digital galvo system
  5. Layer thickness : 0.06 – 0.3 mm
  6. Scanning speed : max 15.2 m/s
  7. Dimensions (L x W x H) : 2,470 x 1,500 x 2,145 mm
  8. Inert gas protection : Nitrogen
  9. Power supply : 380-400V
  10. Process method : Selective laser sintering

- Software

  1. Build Processor

- Materials

  1. TPU01GR, PA12

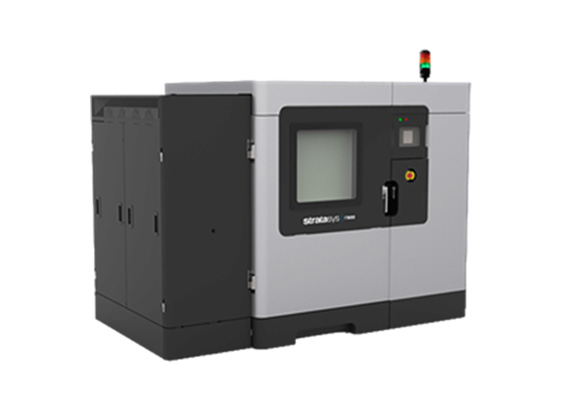

F900

- Technical data

  1. Building volume : 914 x 610 x 914 mm
  2. Nozzle Diameter : 0.127 – 0.508 mm
  3. System size : 2,772 x 1,683 x 2,027 mm
  4. Weight : 2,869 kg
  5. Process method : Fused filament fabrication

- Software

  1. GrabCAD Print

- Materials

  1. ABS, Ultem 1010, Ultem 9085

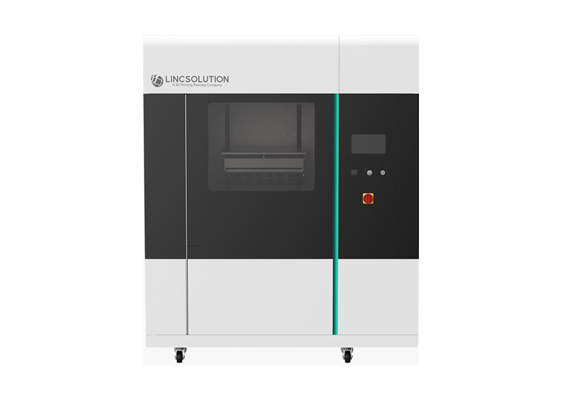

EP-500

- Technical data

  1. Building volume : 500 x 500 x 500 mm
  2. Nozzle Diameter : 0.4 mm
  3. Layer Resolution :0.05 – 0.35 mm
  4. Plate system : Vacuum Bed System
  5. Maximum Nozzle Temperature : Up to 250 ℃
  6. Maximum Chamber Temperature : up to 250 ˚C
  7. Print speed : 2,500 mm/min
  8. System size : 2,772 x 1,683 x 2,027 mm
  9. Weight : 2,869 kg
  10. Process method : Fused filament fabrication

- Software

  1. Prusa, Cura

- Materials

  1. PEEK, PEEK-CFR(Carbon), ABS

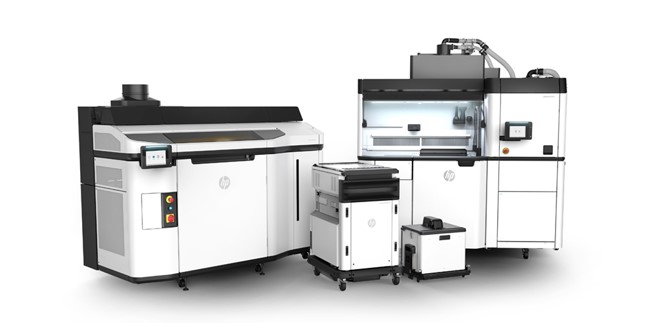

HP Jet Fusion 5200

- Technical data

  1. Building volume : 380 x 284 x 380 mm
  2. Laser type (Power) : 0.05 - 0.34mm
  3. Building rate :5,058cm3/h
  4. Layer thickness : 0.08mm
  5. Dimensions (W x D x H) : 2,990 x 934 x 2,400 mm
  6. Weight : 724 kg

- Materials

  1. PEEK, PEEK-CFR(Carbon), ABS

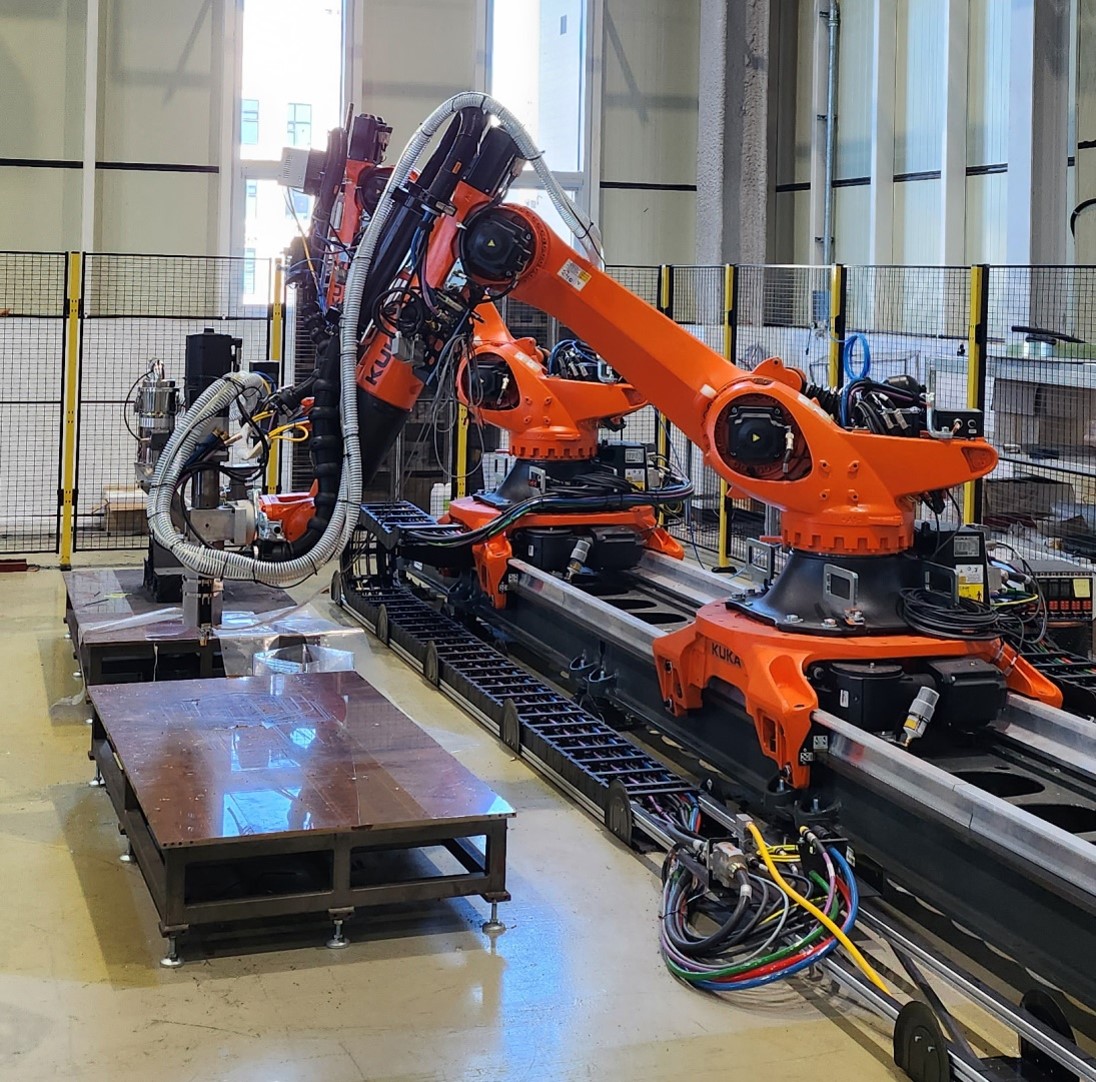

6AXIS ROBOT ARM MILLING

- Technical data

  1. Maximum reach : 2,701 mm
  2. Maximum payload : 167 kg
  3. Rated payload : 120 kg
  4. Pose repeatability (ISO 9283) : -0.05~0.05 mm
  5. Number of axes : 6
  6. Mounting position : Floor
  7. Foot print : 754 mm x 754 mm

- Materials

  1. PC / PLA /ABS / CFRP / BFRP / PETG
